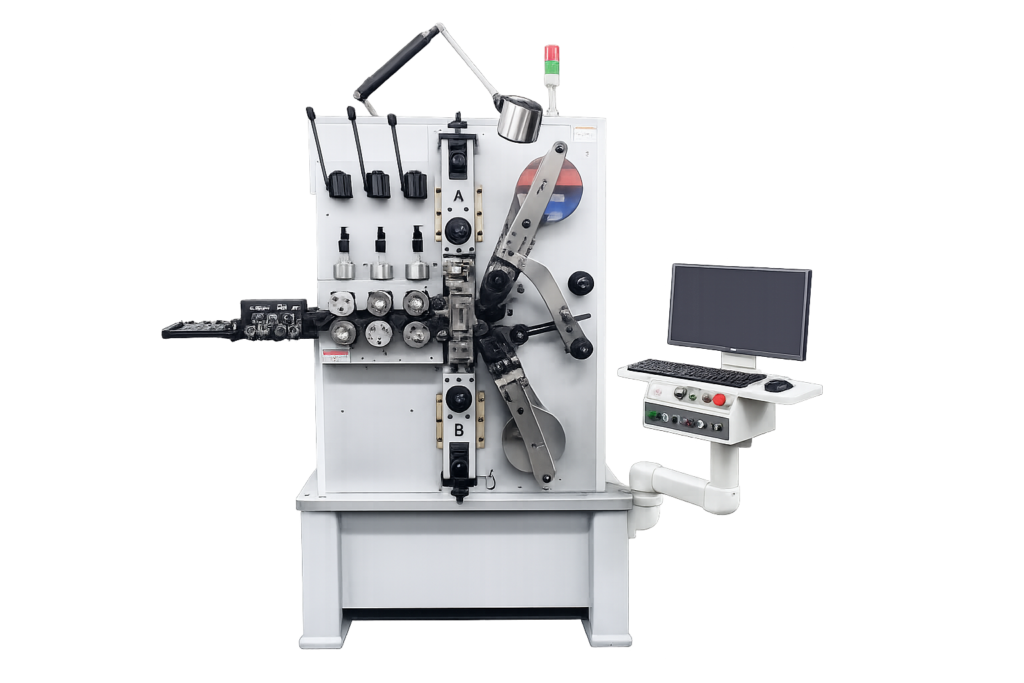

The 845 Compression Spring Coiling Machine is a CNC compression spring forming system designed for stable and efficient production of medium to heavy wire compression springs.

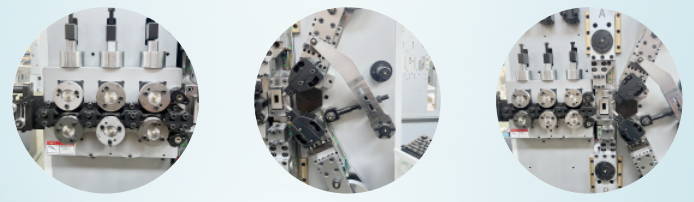

Built with a reinforced mechanical structure and servo-controlled forming system, the machine provides precise control of wire feeding, coil diameter, pitch adjustment, and cutting operations. This dedicated compression spring configuration ensures consistent spring geometry and reliable repeatability during continuous production.
Equipped with a Windows-based CNC control system, the 845 allows intuitive programming, accurate parameter control, and smooth operation. The system supports fast setup adjustments and stable long-term manufacturing performance.

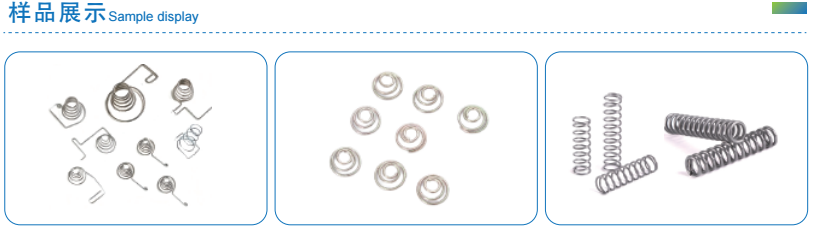

The 845 is suitable for producing standard compression springs and variable-pitch springs used in automotive components, industrial equipment, hardware parts, and heavy-duty mechanical applications requiring consistent spring force and dimensional stability.
Features
- CNC-controlled compression spring coiling system
- Reinforced structure for medium to heavy wire applications
- Precise wire feeding and pitch control
- Stable coil diameter and free-length consistency
- Windows-based industrial PC control platform
- Designed for long-run mass production of compression springs
Specification
| Model | 845 Compression Spring Coiling Machine |
| Applicable Wire Diameter | Ø1.2–4.5 mm |
| Maximum Feed Length per Command | 100 mm |
| Minimum Feed Length per Command | 0.01 mm |
| Maximum Wire Feed Speed | 350 m/min |
| Maximum Feed Length | Unlimited |
| Number of Control Axes | 8 axes |
| Total Servo Motor Power | 2.0 kW × 5 |
| Power Supply | 380 V / 3 Phase / 50–60 Hz |
| Control System | Industrial PC (Intel-based) |
| Program Storage Capacity | Over 10,000 programs |
| Installed Power (Reference) | 20 kW |
| Air Pressure Requirement | 5–6 kg/cm² |
| Machine Dimensions (L) | 1750 mm |
| Machine Dimensions (W) | 1550 mm |
| Machine Dimensions (H) | 1850 mm |
※ The speci cations are subject to change without notice.
