30–125 Ton High Precision Fine Stamping Solution

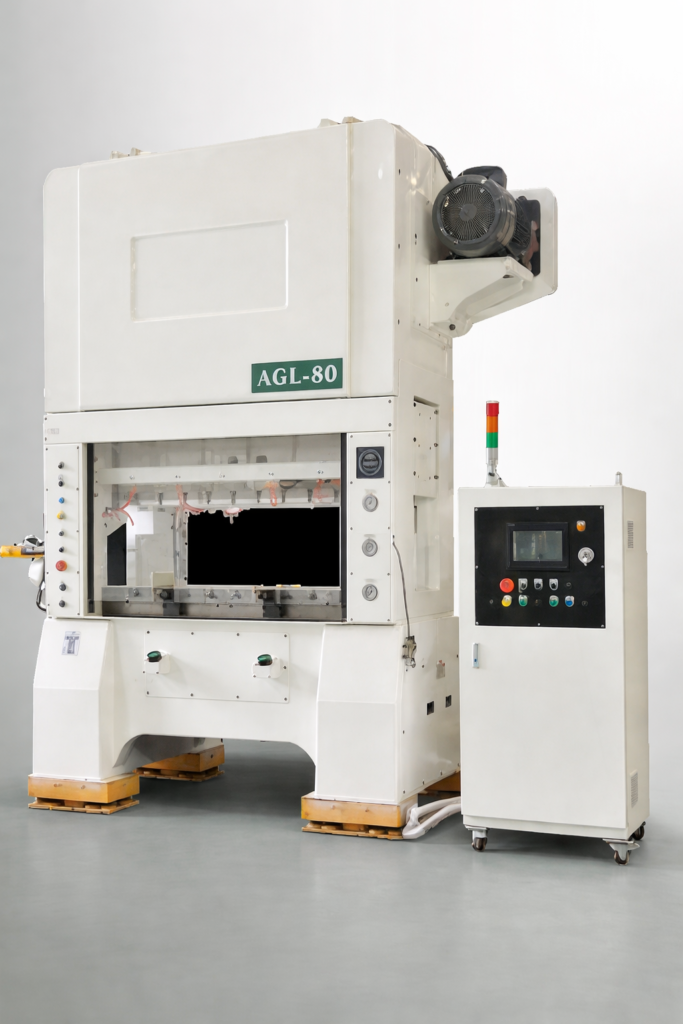

The AGL Series High Speed Knuckle Type Precision Press is designed for high precision fine stamping applications requiring extremely high accuracy and minimal deformation.
With knuckle mechanism and four-point guide structure, the AGL Series delivers superior stamping precision and stable high-speed production.
The AGL Series is ideal for lead frames, connectors, terminals, motor laminations, and precision electronic components.

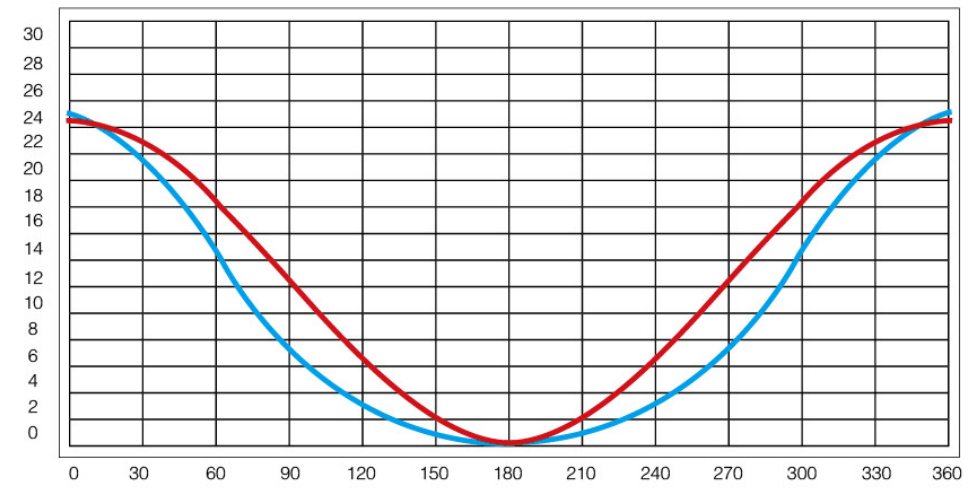

Comparison of Stamping Curves: Toggle Link vs Crankshaft Mechanism
Red line: Crank Type Stroke 25mm / Blue line: Toggle Type Stroke 25mm
Why Choose AGL Series
Knuckle Type High Precision Mechanism
The AGL Series adopts knuckle joint mechanism for ultra precision stamping.
Key Benefits
High precision forming
Minimal deformation
Improved stamping quality
Extended die life
Four Point Guide Precision Structure
The AGL Series adopts four-point guide system for high accuracy.
Advantages
High precision slide guidance
Reduced vibration
Improved product consistency
Long machine life
High Speed Fine Stamping Performance
The AGL Series is designed for fine stamping and high speed production.
Features
High speed stamping
Fine blanking capability
Stable production
High efficiency
Low Deformation Stamping
Knuckle mechanism reduces forming impact.
Benefits
Minimal material deformation
Improved surface quality
Higher precision stamping
Reduced die wear
High Rigidity Frame Structure
The AGL Series adopts strong steel frame with high rigidity.
Advantages
Stable operation
Reduced vibration
Long machine lifespan
Capacity Range
The AGL Series supports precision stamping applications.

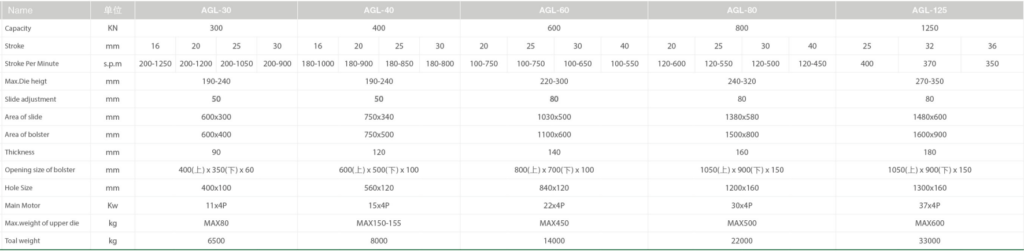

Available Models
AGL-30
AGL-40
AGL-60
AGL-80
AGL-125
Capacity Range
30 Tons to 125 Tons
Standard Features
Electric die height adjustment
Digital die height indicator
Slide balancing system
Crank angle display
Stroke counter
Lubrication system
Air blowing device
Independent control box
Operating platform
Maintenance toolbox
Optional Equipment
Pneumatic die cushion
Photoelectric safety device
Knock out device
Automatic feeder
Inspection system
Isolation mounts
Soundproof enclosure
Automatic feeding system
Application Industries
Suitable Applications
Lead frames
Electronic connectors
Terminals
Motor laminations
Precision electronic components
Fine stamping parts
Ideal Applications
AGL Series is especially suitable for
Fine blanking stamping
Connector stamping
Electronic components
Motor core stamping
High precision stamping
Ideal Replacement For
AGL Series is suitable as an alternative to
AIDA Knuckle Press
KOMATSU Knuckle Press
Chin Fong Knuckle Press
Taiwan Fine Stamping Press
China Knuckle Press
AGL Series provides
Ultra precision stamping
High speed performance
Stable production
Competitive pricing
Engineering Support by TM International
TM International provides full engineering support including
Machine selection
Tooling coordination
Automation integration
Production line planning
After sales technical support
We do not just supply machines
We deliver complete stamping solutions
Why TM International
Engineering driven solutions
Global sourcing capability
Project coordination experience
Long term technical support
