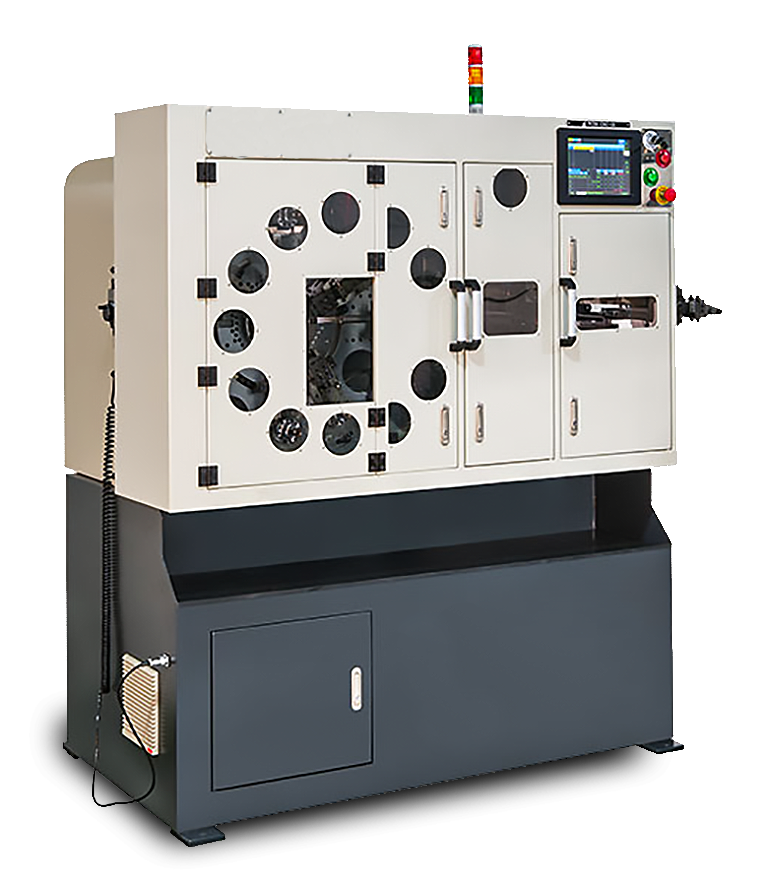

The CNC-36T Wire / Strip Forming Machine is a compact multi-slide forming system designed for stable production of wire and strip-formed components with moderate stamping requirements.
The machine adopts a servo-driven forming structure that enables precise control of feeding, stamping, and forming motions. Through programmable motion timing control, each forming axis operates in synchronized sequence to ensure consistent part geometry and reliable repeatability.
Built on a rigid mechanical frame, the CNC-36T delivers stable forming accuracy while maintaining efficient floor-space utilization. Its balanced structural design makes the machine suitable for long-term production with reduced vibration and controlled forming behavior.
Supporting both wire and strip materials, the CNC-36T is widely applied in automotive hardware, electrical components, clips, brackets, and general precision metal parts where stable output and controlled forming force are required.
With its modular slide layout and expandable auxiliary interfaces, the CNC-36T provides a flexible solution for small to medium complexity forming applications.
Features
- Servo-driven multi-slide forming system
- Electronic motion timing control
- Wire & strip material compatibility
- Compact high-rigidity machine structure
- Precision roller feeding mechanism
- Integrated stamping and forming process
- Programmable I/O for auxiliary units
- Automatic lubrication system
- Suitable for continuous production operation
Specification
| Wire Diameter | 0.6-3.0 mm |
| Thickness of Strip | 0.3-1.5 mm |
| Width of Strip | 30 mm |
| Hardness of Material: | HV400 |
| Standard Axes | 1 |
| Max. Production Rate: | 150pcs/min |
| Max. Feed Length: | 200 mm |
| Press Capacity: | 10 ton |
| Slide Capacity: | 1.8 ton |
| Press Stroke: | 14 mm |
| Slide Stroke: | 37 mm |
| Slide Accessory | 5 |
| Machine Dimension: | 2000*980*2150 mm |
| Machine Weight: | 1575 kg |
※ The speci cations are subject to change without notice.
