The CNC-38T Wire / Strip Forming Machine is a high-precision multi-slide forming system developed for stable production of wire and strip-formed components requiring controlled stamping force and consistent forming accuracy.
The machine is equipped with a Schneider Electric servo system, providing precise motion control, fast response performance, and reliable long-term operation. Independent servo-driven axes allow accurate synchronization of feeding, stamping, and forming movements within each production cycle.
Built on a rigid mechanical structure, the CNC-38T integrates multi-slide forming technology with programmable motion timing control, ensuring stable forming quality and repeatability during continuous operation.
Supporting both wire and metal strip materials, the CNC-38T is suitable for applications such as automotive hardware, electrical terminals, clips, brackets, and precision metal components where dimensional consistency and process stability are critical.
With its modular slide configuration and expandable auxiliary units, the CNC-38T provides a balanced solution between forming capability, production efficiency, and system flexibility.
Features
- Schneider Electric servo system
- Multi-slide forming structure
- Electronic motion timing control
- Wire & strip material compatibility
- Rigid machine frame construction
- Precision roller feeding system
- Integrated stamping and forming process
- Modular slide configuration
- Programmable I/O for auxiliary units
- Automatic lubrication system
- Stable long-run production capability
Speicification
| Wire Diameter | 1.0-4.0 mm |
| Thickness of Strip | 0.3-1.5 mm |
| Width of Strip | 40 mm |
| Hardness of Material: | LESS THAN HV400 |
| Standard Axes | 1 |
| Max. Production Rate | 150pcs/min |
| Max. Feed Length: | 250 mm |
| Press Capacity: | 20 ton |
| Slide Capacity: | 3 ton |
| Press Stroke: | 14 mm |
| Slide Stroke: | 42 mm |
| Slide Accessory | 6 |
| Machine Dimension | 1920*900*1900 mm |
| Machine Weight | 1900 kgs |
※ The speci cations are subject to change without notice.

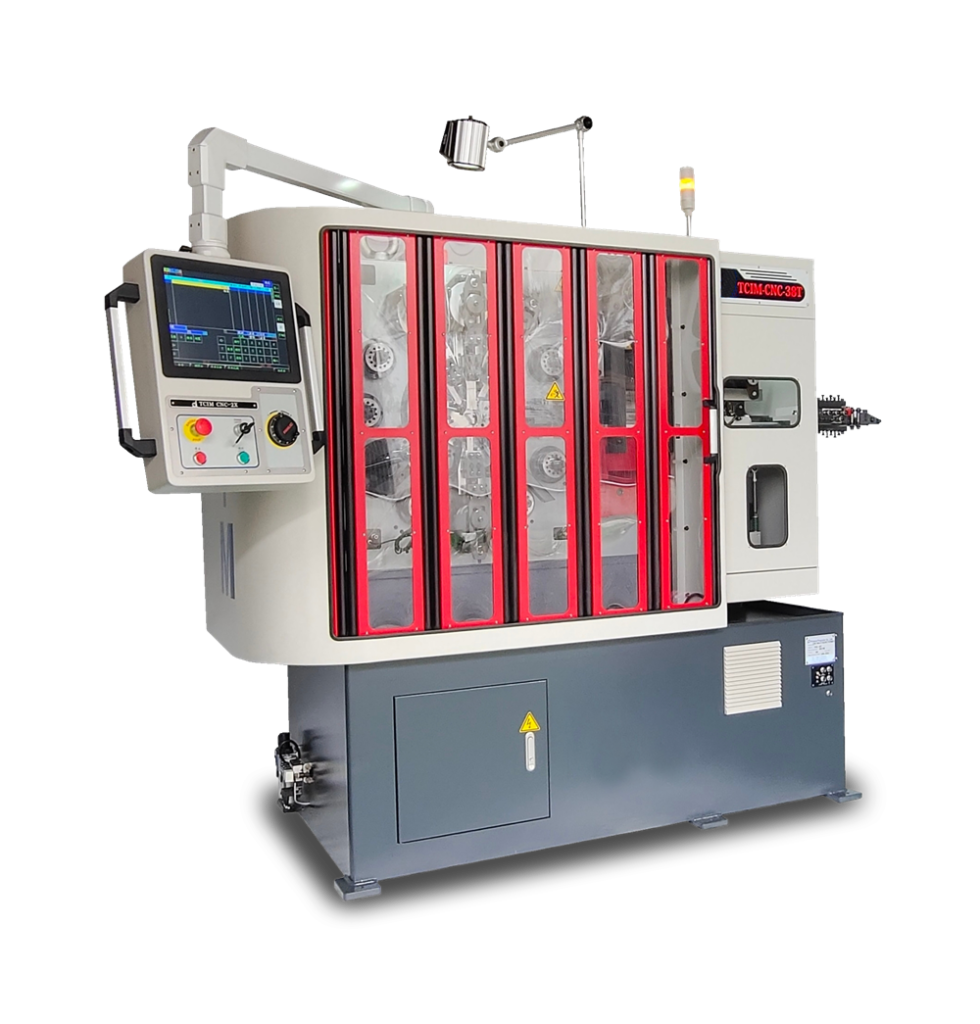

*The safety guard shown in the image is optional and is not part of the standard configuration.
