High-performance compression spring coiling machines designed for stable pitch control, precise coil geometry, and consistent mass production.
CTA
VIEW MODELS ｜ REQUEST TECHNICAL CONSULTATION
Overview
TM provides CNC compression spring coiling machines developed for accurate coil forming and stable long-term production.
These machines are engineered to support high-speed spring coiling, precise wire feeding, and consistent spring dimensions, making them suitable for both standard compression springs and customized spring geometries.
The camless CNC structure allows flexible program control, quick setup changes, and reliable repeatability during continuous operation.
Machine Technology
Camless CNC Coiling System
- Fully camless design driven by servo motors
- Eliminates mechanical cam limitations
- Enables complex spring geometries and variable pitch control
- Improves forming accuracy and machine stability
Multi-Axis Servo Control
- Independent servo control for feeding, coiling, pitch, and cutting
- High positional accuracy with synchronized axis movement
- Stable output even under high-speed operation
Intelligent CNC Controller
- Industrial PC–based control system
- Graphic spring programming interface
- Memory storage for multiple spring programs
- Fast parameter adjustment without mechanical modificatio

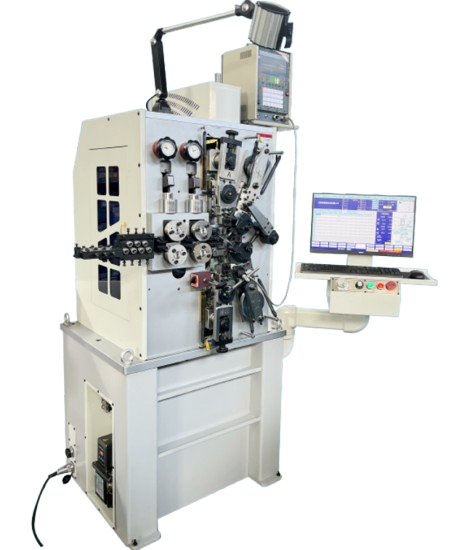

730
- Wire Diameter Range
- Hard wire: 0.5–3.0 mm

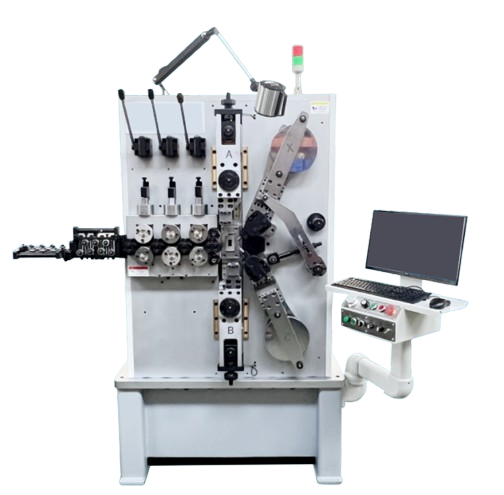

845
- Wire Diameter Range
- Hard wire: 1.2–4.5 mm
