15–400 Ton Mechanical Stamping Solution

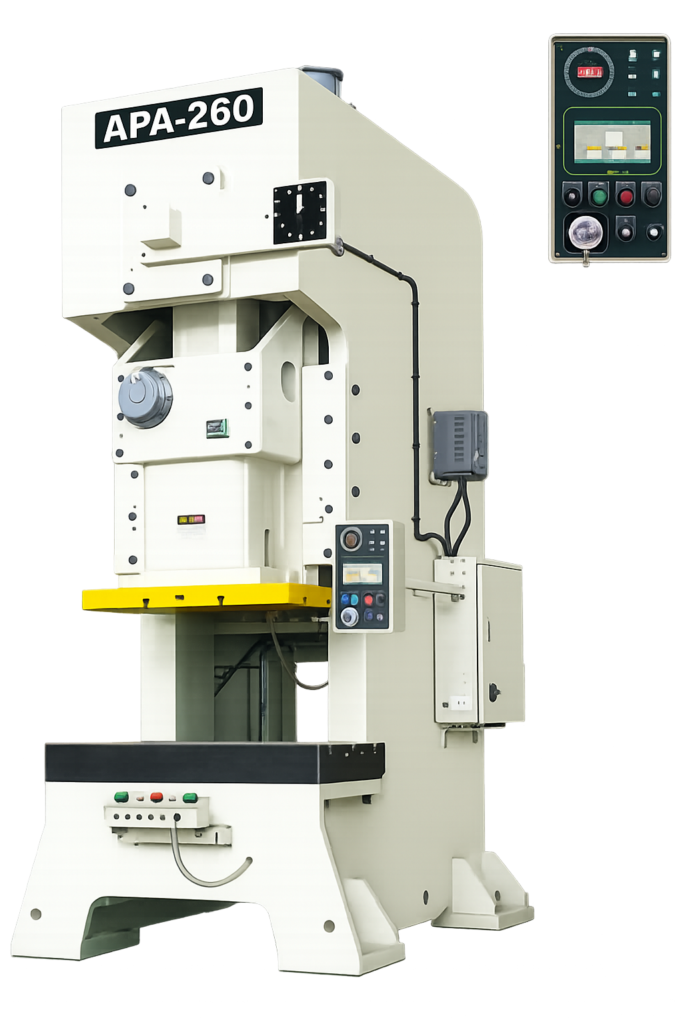

The APA Series High Precision Power Press is designed for precision stamping and forming applications requiring high rigidity, stable performance, and long-term reliability.
With a heavy-duty welded steel frame and precision-machined components, the APA Series provides excellent stability and production efficiency for demanding industrial environments.
This series is ideal for manufacturers seeking a reliable and cost-effective alternative to major press brands.
| Model | Unit | APA-15 | APA-25A | APA-25 | APA-35 | APA-45 | APA-60 | APA-80 | APA-110 | APA-160 | APA-200 | APA-260 | APA-315 | APA-400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | ton | 15 | 25 | 25 | 35 | 45 | 60 | 80 | 110 | 160 | 200 | 260 | 315 | 400 |
| Rated tonnage point | mm | 1 | 3.2 | 3.2 | 3.2 | 3.2 | 2 | 2 | 3 | 3 | 3 | 3 | 3.5 | 3.5 |
| Speed changing | s.p.m | 120-180 | 60-140 | 60-140 | 40-120 | 40-100 | 35-90 | 35-80 | 30-60 | 20-50 | 20-50 | 20-50 | 20-40 | 20-35 |
| Stable speed | s.p.m | 130 | 110 | 110 | 85 | 75 | 65 | 65 | 50 | 35 | 35 | 30 | 30 | 30 |
| Stroke | mm | 60 | 80 | 60 | 70 | 80 | 120 | 150 | 180 | 200 | 200 | 200 | 250 | 280 |
| Max die height | mm | 200 | 195 | 200 | 220 | 250 | 310 | 340 | 360 | 400 | 460 | 460 | 500 | 550 |
| Slide adjustment | mm | 50 | 50 | 50 | 55 | 60 | 75 | 80 | 80 | 100 | 100 | 110 | 120 | 120 |

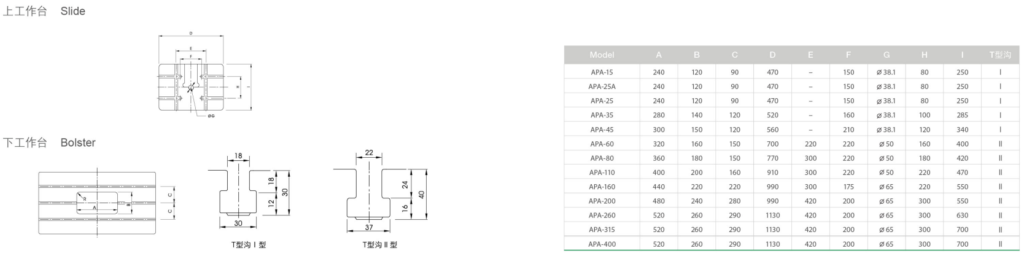

| Slide area | mm | 470x250x50 | 470x250x50 | 470x250x50 | 520x285x50 | 560x340x60 | 700x400x70 | 740x420x70 | 910x470x80 | 950×590 | 950×590 | 1130×630 | 1500×700 | 1600×750 |
| Bolster area | mm | 680x300x70 | 680x300x65 | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 | 1000x550x90 | 1150x600x110 | 1250x760x140 | 1350x820x140 | 1500x820x160 | 1500x840x180 | 1600x900x200 |
| Shank hole | mm | Ø38.1 | Ø38.1 | Ø38.1 | Ø38.1 | Ø38.1 | Ø50 | Ø50 | Ø50 | Ø65 | Ø65 | Ø65 | Ø65 | Ø65 |
| Main motor | kw.p | 2.2×6 | 3.7×4 | 3.7×4 | 3.7×4 | 5.5×4 | 5.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | 22×4 | 30×4 | 37×4 |
| Slide adjust device | Manual | Manual | Manual | Manual | Manual | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | |
| Air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Press precision | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | GB(JIS) Class 1 | |
| Machine dimension | mm | 1236x830x1920 | 1280x850x2200 | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | 1595x1000x2800 | 1800x1100x2800 | 1900x1300x3200 | 2420x1390x3465 | 2420x1490x3612 | 2735x1780x4070 | 2780x1850x4470 | 2870x1980x4830 |
| Die cushion capacity | ton | — | — | — | 2.3 | 2.3 | 3.6 | 3.6 | 6.3 | 10 | 10 | 14 | 14 | 14 |
| Die cushion stroke | mm | — | — | — | 50 | 50 | 70 | 70 | 80 | 80 | 80 | 100 | 100 | 100 |
| Die cushion area | mm² | — | — | — | 300×230 | 300×230 | 350×300 | 450×310 | 500×350 | 650×420 | 650×420 | 710×480 | 810×480 | 810×480 |
Why Choose APA Series
High Rigidity Steel Frame
The APA Series adopts a high-strength welded steel frame with stress relief treatment to ensure long-term stability and precision performance.
Key Benefits
Superior rigidity
Reduced vibration
Stable stamping accuracy
Long machine lifespan
High Precision Drive System
The APA Series features a precision crankshaft transmission system built with high-quality components.
Key Features
High strength crankshaft
Precision gear transmission
Heavy duty bearings
Smooth operation
Low vibration
Advanced Clutch and Brake System
High-performance clutch and brake systems provide reliable operation and improved safety.
Advantages
Fast response
Stable braking
Reduced wear
Long service life
Easy Operation and Maintenance
The APA Series is designed for modern manufacturing environments.
User-friendly control
Easy maintenance
Low noise operation
Energy saving design
Standard Features
Hydraulic overload protection
Automatic lubrication system
Slide adjustment system
Balance device
Misfeed detection system
Electrical stroke counter
Air ejector
Maintenance toolbox
Operation manual
Optional Equipment
Quick die change system
Photoelectric safety device
Feeder integration
Uncoiler integration
Straightener integration
Touch screen control
Die cushion device
Application Industries
Suitable Applications
Automotive components
Electronic parts
Metal hardware
Household appliance components
Industrial components
Precision stamping parts
Ideal Replacement For
APA Series is suitable as an alternative to
AIDA Press
KOMATSU Press
Chin Fong Press
Taiwan Mechanical Press
China Mechanical Press
APA Series provides
Competitive pricing
Reliable performance
Flexible customization
Shorter delivery time
Engineering Support by TM International
TM International provides full engineering support including
Machine selection
Tooling integration
Automation support
Production line planning
After sales technical support
We do not just supply machines
We deliver complete stamping solutions
Why TM International
Engineering driven solutions
Global sourcing capability
Project coordination experience
Long term technical support
