The L-1125R/L1123R Spring Forming Machine is a camless CNC multi-axis spring forming system designed for high-precision production of small-diameter springs and complex wire forming components.
Featuring a servo-driven camless structure, the machine eliminates mechanical cam limitations and enables flexible programming of forming sequences. Independent axis control allows accurate synchronization of wire feeding, coiling, bending, and cutting operations.
Equipped with a Windows-based CNC control system and high-precision transmission components, the L-1125R delivers stable forming accuracy, smooth operation, and efficient setup changeover, making it suitable for applications requiring frequent model changes and consistent product quality.

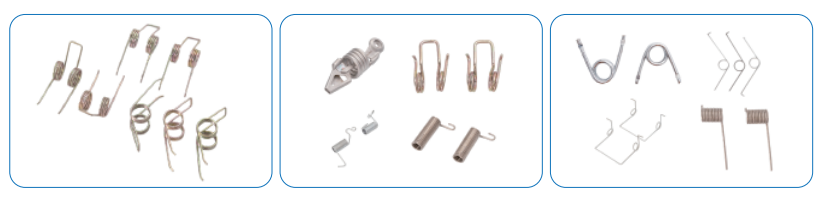

The machine is capable of producing compression springs, torsion springs, extension springs, and customized wire forming parts, and is widely applied in electronics, precision hardware, medical devices, and small mechanical components.

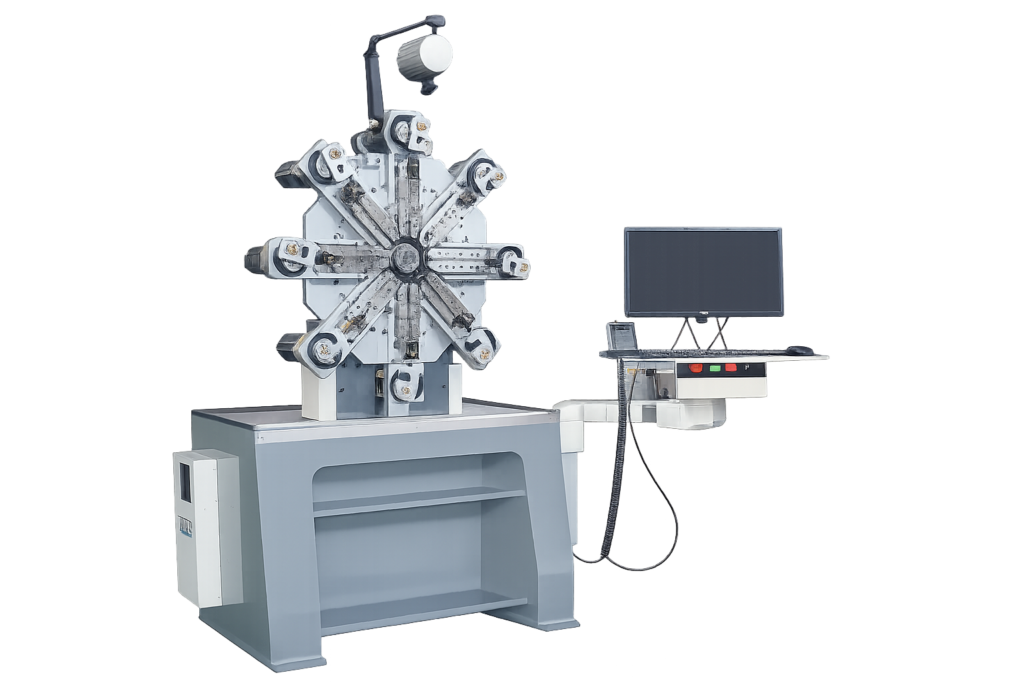

L-1125R

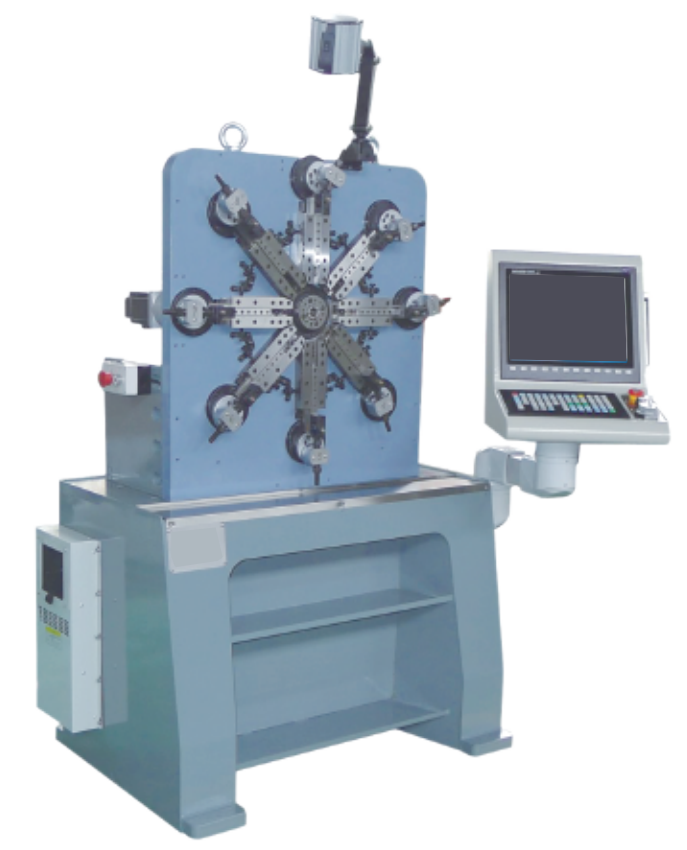

L-1123R
Features
- Camless CNC multi-axis servo forming system
- Windows-based industrial PC control platform
- High forming accuracy for small-diameter wire springs
- Flexible programming for complex spring geometries
- Suitable for compression, torsion, extension springs and wire forming
- Designed for stable long-term production environments
Specification
| Model | L-1125 Wire Forming Machine | L-1123 Wire Forming Machine |
| Applicable Wire Diameter | Hard wire: Ø0.2–2.5 mm | Hard wire: Ø0.2–2.3 mm |
| Maximum Feed Length per Command | 10,000 mm | 10,000 mm |
| Minimum Feed Length per Command | 0.01 mm | 0.01 mm |
| Maximum Wire Feed Speed | 100 m/min | 100 m/min |
| Maximum Feed Length | Unlimited | Unlimited |
| Number of Control Axes | 11 axes | 11 axes |
| Total Servo Motor Power | 12 kW | 12 kW |
| Power Supply | 380 V / 3 Phase / 50–60 Hz | 380 V / 3 Phase / 50–60 Hz |
| Control System | Industrial PC (Intel-based) | Industrial PC (Intel-based) |
| Program Storage Capacity | Over 10,000 programs | Over 10,000 programs |
| Installed Power (Reference) | 12.1 kW | 12.1 kW |
| Air Pressure Requirement | 5–6 kg/cm² | 5–6 kg/cm² |
| Machine Dimensions (L) | 800 mm | 800 mm |
| Machine Dimensions (W) | 1350 mm | 1350 mm |
| Machine Dimensions (H) | 1680 mm | 1680 mm |
| Machine Weight | Approx. 900 kg | Approx. 900 kg |
※ The speci cations are subject to change without notice.
