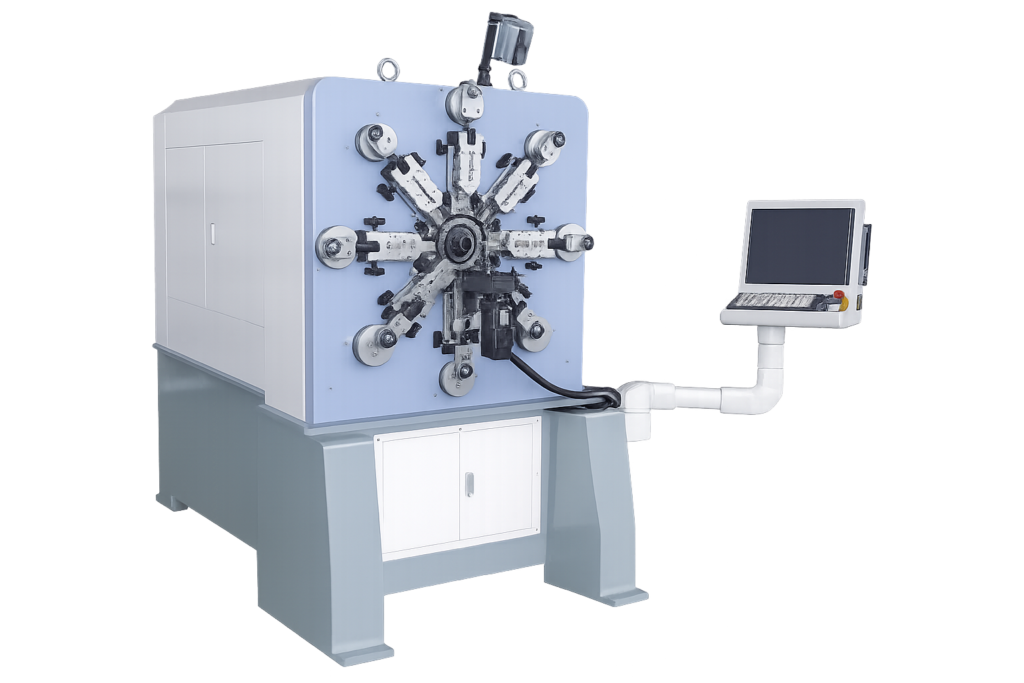

The L-1230R Spring Forming Machine is a camless CNC multi-axis spring forming system developed for high-precision production of small to medium wire springs and complex wire forming parts.
Built with a servo-driven camless architecture, the machine eliminates traditional mechanical cam constraints and enables flexible programming for various spring shapes. Independent axis control allows accurate synchronization of wire feeding, coiling, pitch adjustment, and cutting operations.

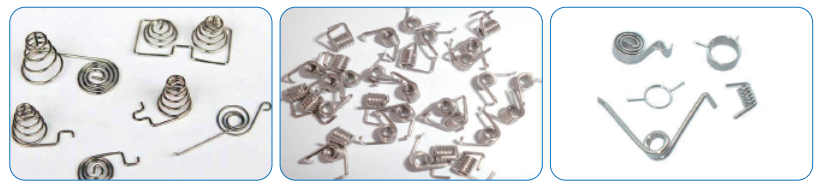

Equipped with a Windows-based CNC control system and high-precision transmission structure, the L-1230R provides stable forming accuracy, smooth operation, and efficient setup changeover. The machine is well suited for producing compression springs, torsion springs, extension springs, and customized wire forms.
The L-1230R is widely applied in automotive components, electronic hardware, mechanical parts, and precision spring manufacturing requiring consistent quality and reliable long-term operation.
Features
- Camless CNC multi-axis servo forming system
- Windows-based industrial PC control platform
- Stable forming accuracy for small to medium wire springs
- Flexible programming for complex spring geometries
- Suitable for compression, torsion, extension springs and wire forming
- Designed for continuous and stable production environments
Specification
| Model | L-1230R Wire Forming Machine |
| Applicable Wire Diameter | Hard wire: Ø0.6–3.0 mm |
| Maximum Feed Length per Command | 10,000 mm |
| Minimum Feed Length per Command | 0.01 mm |
| Maximum Wire Feed Speed | 100 m/min |
| Maximum Feed Length | Unlimited |
| Number of Control Axes | 12 axes |
| Total Servo Motor Power | 18.5 kW |
| Power Supply | 380 V / 3 Phase / 50–60 Hz |
| Control System | Industrial PC (Intel-based) |
| Program Storage Capacity | Over 20,000 programs |
| Installed Power (Reference) | 17.5 kW |
| Air Pressure Requirement | 5–6 kg/cm² |
| Machine Dimensions (L) | 2300 mm |
| Machine Dimensions (W) | 1800 mm |
| Machine Dimensions (H) | 1750 mm |
| Machine Weight | Approx. 2000 kg |
※ The speci cations are subject to change without notice.
