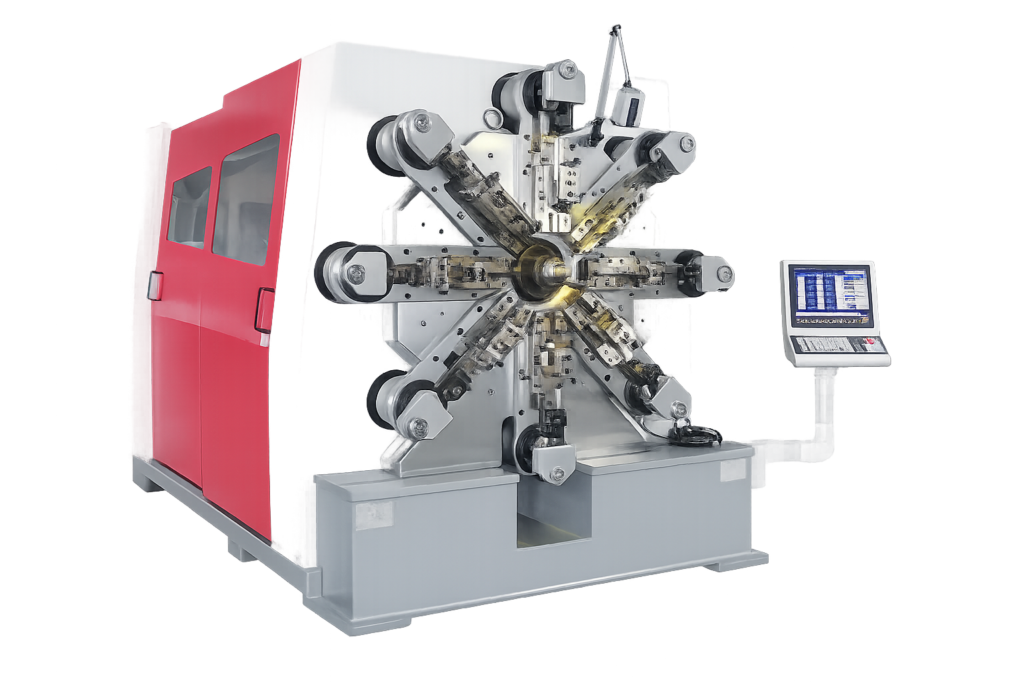

The W-1265R Spring Forming Machine is a camless CNC multi-axis spring forming system designed for high-precision production of medium wire springs and complex three-dimensional wire forms.
Built with a servo-driven camless architecture, the machine removes the limitations of traditional mechanical cam mechanisms and enables flexible programming of forming sequences. Independent axis control allows precise synchronization of wire feeding, coiling, bending, pitch adjustment, and cutting operations.

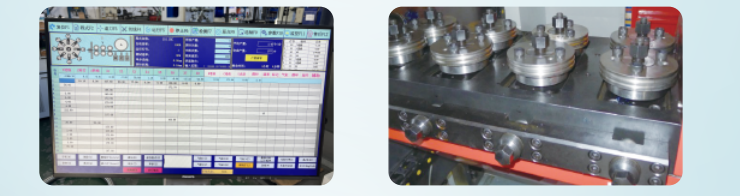

Equipped with a Windows-based CNC control system and high-precision transmission components, the W-1265R delivers stable forming accuracy, smooth motion performance, and efficient setup changeover, supporting continuous production with consistent quality.

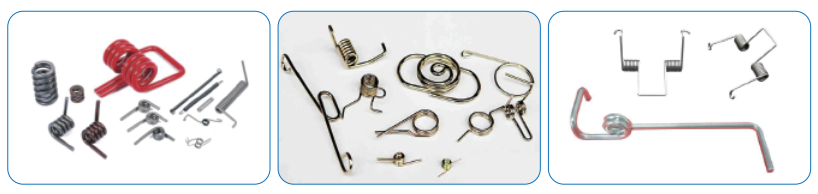

The machine is suitable for manufacturing compression springs, torsion springs, extension springs, and complex wire forming parts, and is widely applied in automotive components, industrial hardware, mechanical assemblies, and precision spring manufacturing.
Features
- Camless CNC multi-axis servo forming system
- Windows-based industrial PC control platform
- Stable forming accuracy for medium wire applications
- Flexible programming for complex spring geometries
- Suitable for compression, torsion, extension springs and wire forming
- Designed for reliable long-term production operation
Specification
| Model | W-1265R Wire Forming Machine |
| Applicable Wire Diameter | Soft wire: Ø3–10 mm / Hard wire: Ø3–6.5 mm |
| Maximum Feed Length per Command | 10,000 mm |
| Minimum Feed Length per Command | 0.01 mm |
| Maximum Wire Feed Speed | 100 m/min |
| Maximum Feed Length | Unlimited |
| Number of Control Axes | 12 axes |
| Total Servo Motor Power | 60 kW |
| Power Supply | 380 V / 3 Phase / 50–60 Hz |
| Control System | Industrial PC (Intel-based) |
| Program Storage Capacity | Over 10,000 programs |
| Installed Power (Reference) | 36 kW |
| Air Pressure Requirement | 5–6 kg/cm² |
| Machine Dimensions (L) | 3700 mm |
| Machine Dimensions (W) | 2000 mm |
| Machine Dimensions (H) | 1850 mm |
| Machine Weight | Approx. 8500 kg |
※ The speci cations are subject to change without notice.
