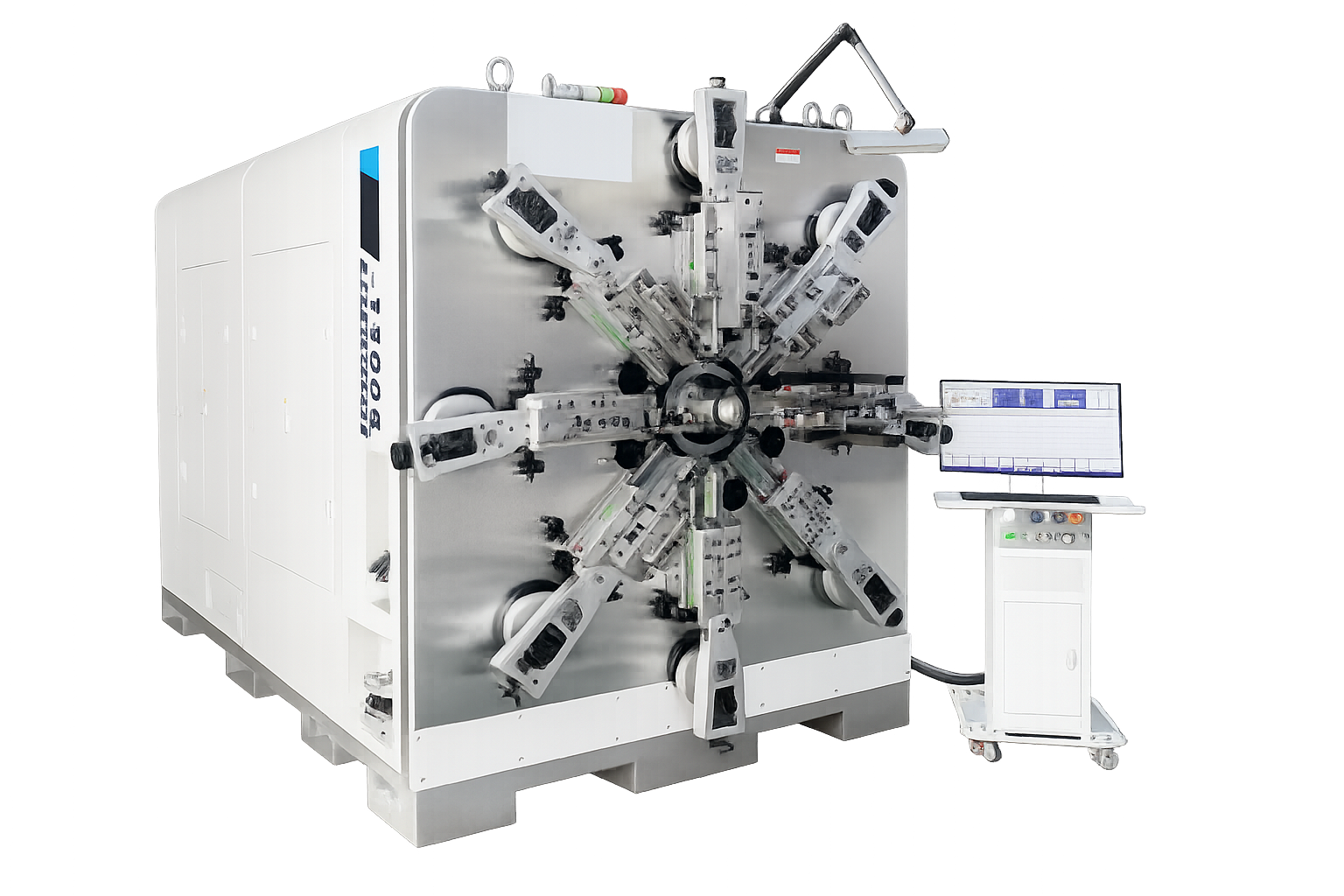

The W-1280R Spring Forming Machine is a camless CNC multi-axis spring forming system designed for high-efficiency production of medium-to-heavy wire springs and complex wire forms.
Equipped with a 12-axis servo-driven architecture, the W-1280R provides precise control of wire feeding, coiling, pitch adjustment, and cutting operations. The camless design allows flexible programming, smooth motion control, and stable forming accuracy during continuous production.
With a Windows-based CNC control system and high-precision transmission structure, the machine supports fast setup changes and reliable long-term operation, making it suitable for both standard spring production and customized spring geometries.
The W-1280R is capable of processing wire diameters up to 8 mm, making it an ideal solution for industrial springs, automotive components, and heavy-duty wire forming applications.
Features
- Key Features (optional display)
- Camless CNC 12-axis servo control system
- Windows-based industrial PC (INTEL platform)
- Wire diameter range: up to Ø8 mm
- High forming stability for medium and heavy wire springs

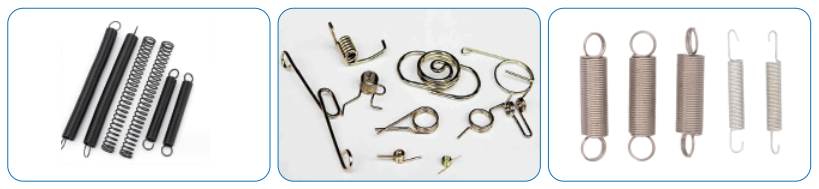

- Suitable for compression springs, torsion springs, and wire forming
- Designed for long-term mass production environments
Specification
| Model | W-1280R Wire Straightening Machine |
| Wire diameter range | Soft wire: 2–14 mm / Hard wire: 2–8 mm |
| Maximum feed length per instruction | 10,000 mm |
| Minimum feed length per instruction | 0.01 mm |
| Maximum wire feed speed | 100 m/min |
| Maximum feed length | Unlimited |
| Number of servo axes | 12 axes |
| Total servo motor power | 72 kW |
| Power supply | 380 V / 3 Phase |
| Control system | Industrial PC (Intel-based) |
| Program storage capacity | Over 10,000 programs |
| Recommended stabilized power | 50 kW |
| Pneumatic system | |
| Air pressure requirement | 5–6 kg/cm² |
| Machine dimensions | |
| Length | 3,300 mm |
| Width | 2,200 mm |
| Height | 2,000 mm |
※ The speci cations are subject to change without notice.
